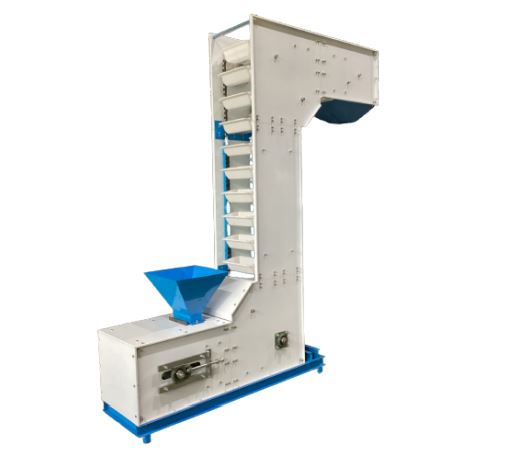

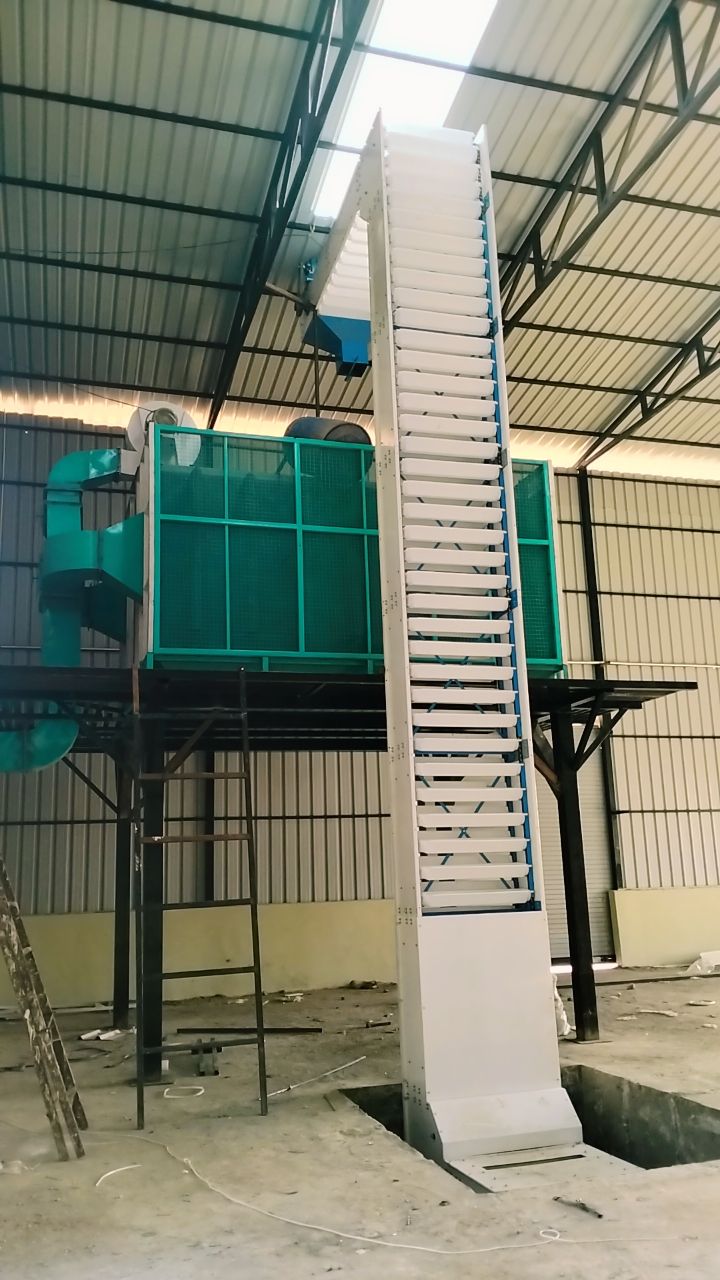

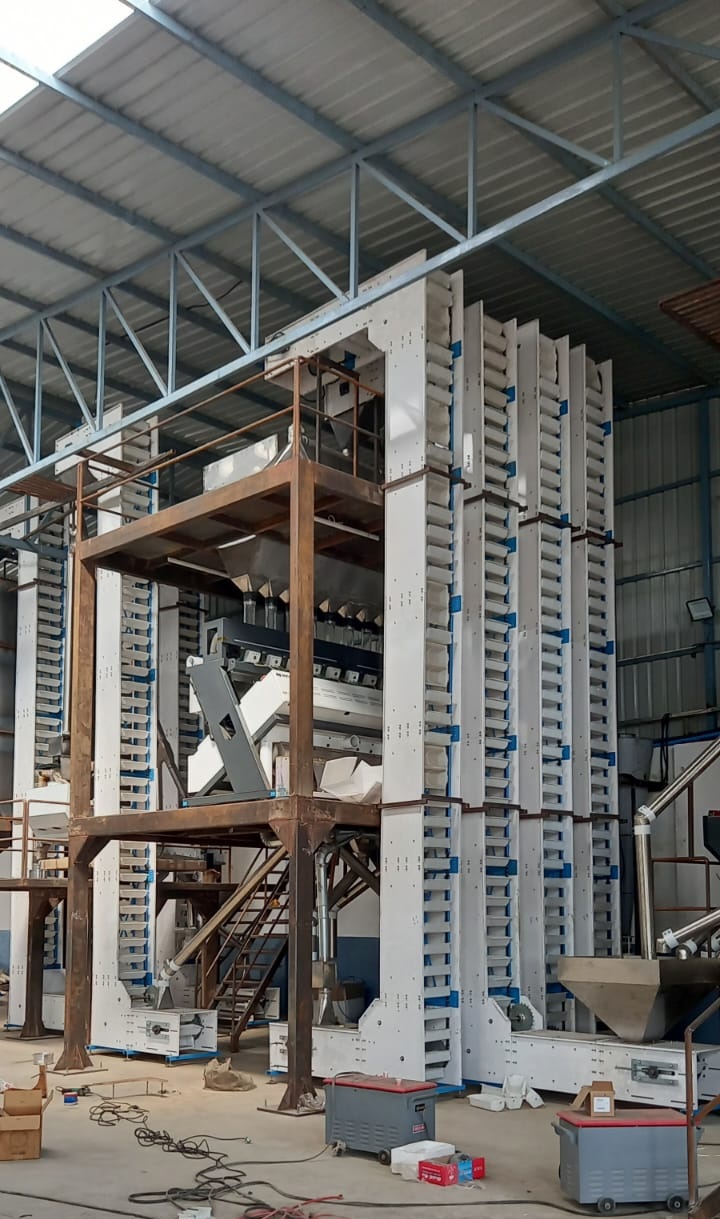

The Z OR C bucket elevators manufactured by HA4.0 can be delivered in 2 types, depending on the amount of product to be transported. This conveyor has the big benefit of combining both horizontal and vertical transport in one machine. Adding the very gentle way of transporting, the Z or C bucket elevator is the perfect conveyor for seeds and other sensible products. By means of using different types of buckets ( in size ), there’s a wide range of different hourly capacities that can be reached.

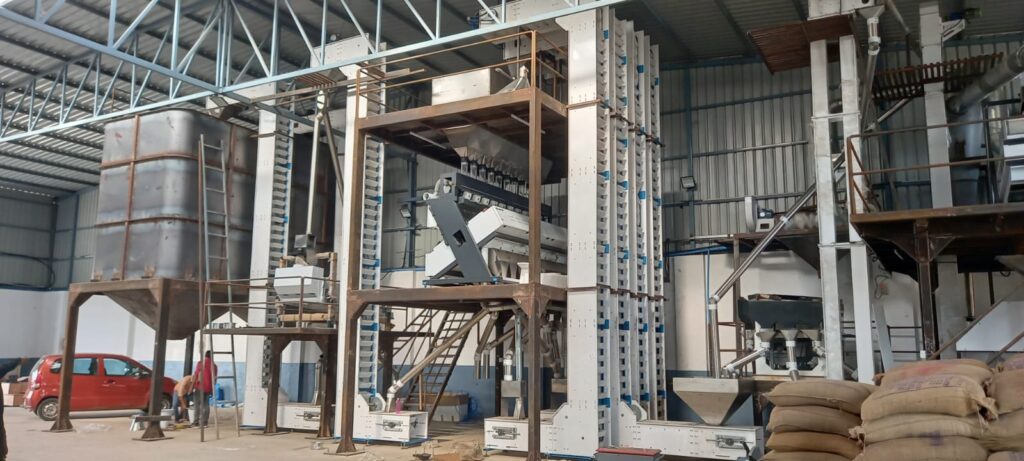

This bucket elevator is well suited for the workshop with limited spaces for replacing several sets of conveyors

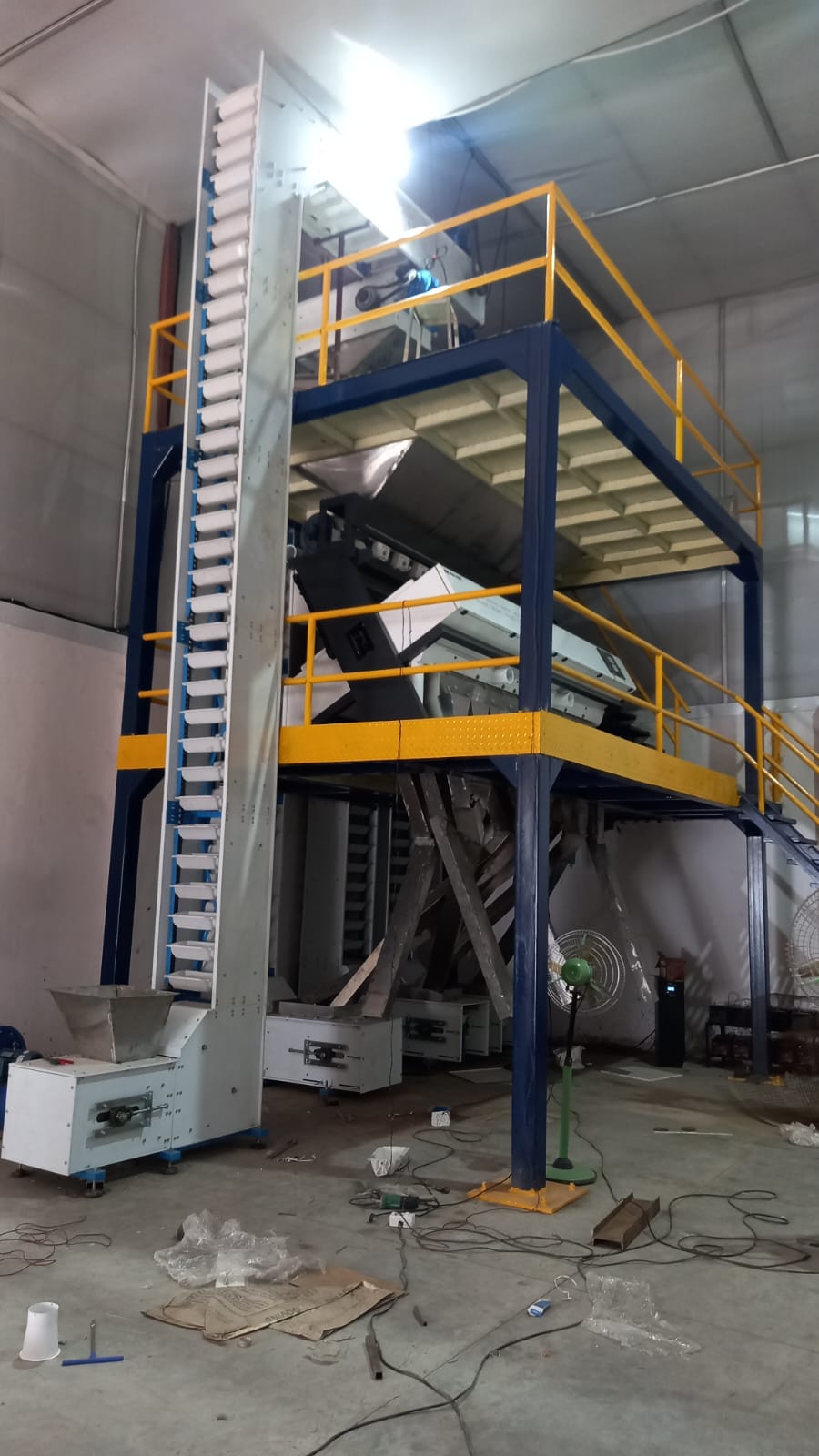

This bucket elevator is well suited for the workshop with limited spaces for replacing several sets of conveyors
- Application/Usage : Industries
- Automation Grade : Semi-automatic
- Inclination : Vertical
- Country of Origin : Made in India
- Corrosion Resistance : Yes

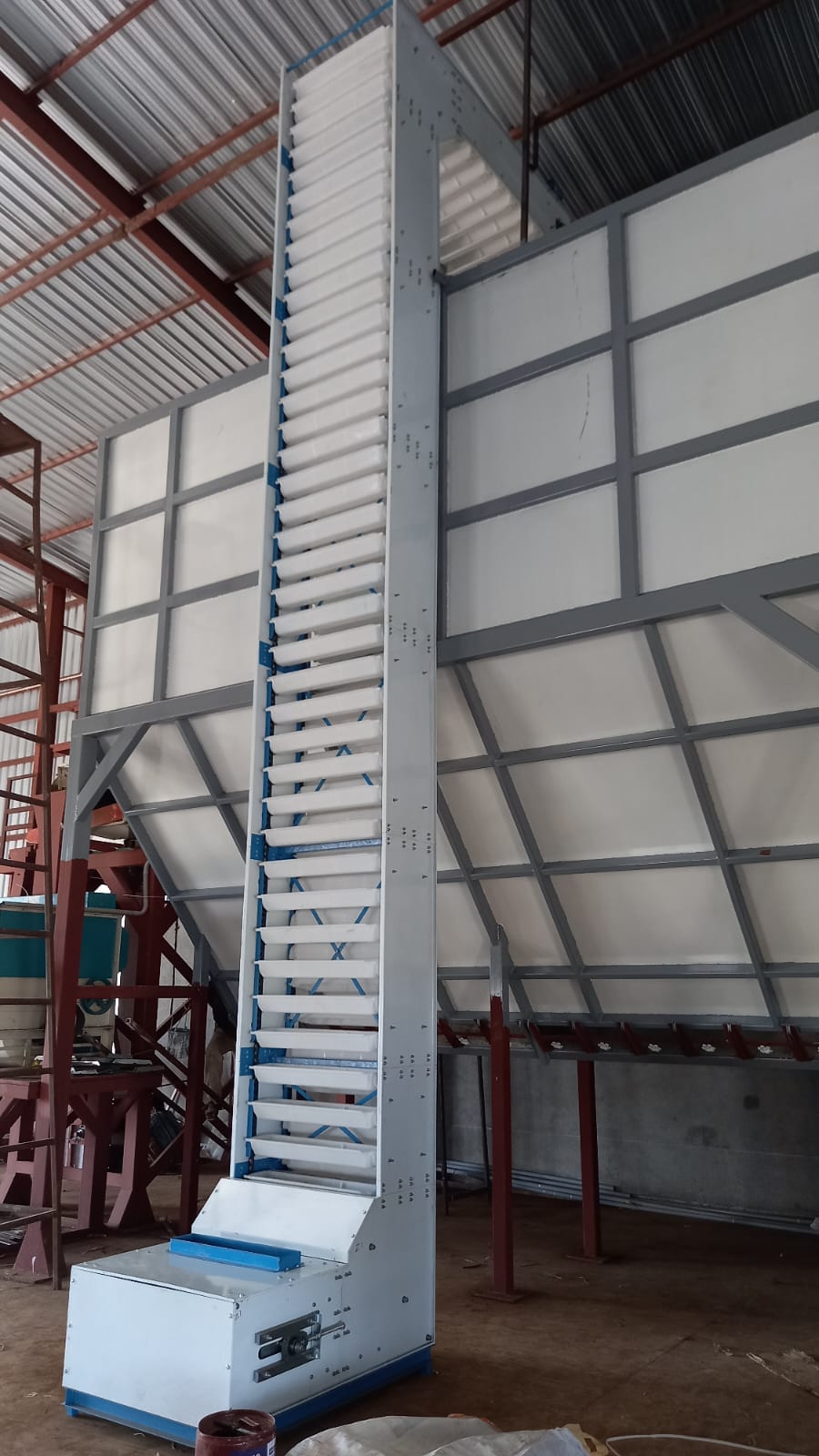

HA4.0 Z bucket elevators are designed modularly and are normally painted. On request, galvanized or powder coated surfaces are also possible.
MODELS AND CAPACITIES
MODELS

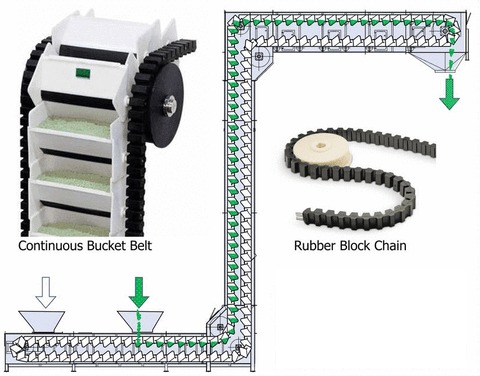

As standard, the pendulum bucket elevator is supplied as a Z, I or C-version. For special installations, the elevators are formed as a C-Z-version, an E-version, an angle Z-version or a double Z–version, referred to as the stair version. Additionally, other models can be supplied on request.
CAPACITIES
The pendulum bucket elevator is available in two different types based on a bucket filling degree of 75% and a chain speed of 10RPM
- HA 4 ltr bucket for max. 10,5 m3/h
- HA 6 ltr bucket for max. 23 m3/h
This station is situated in the foot section as the first part. By means of turning a spindle, the tension of the chain carrying the buckets is easily adjustable
The overlapping of the buckets in this section grants that all product inserted will go into the buckets passing by without any loss. Generally, a vibratory feeder should be used before the inlet to guarantee a harmonious filling of the buckets. The installation of several inlets is possible.
The vertical and horizontal slots are delivered in a standard length. To reach the correct heights and lengths of the system, fitting pieces with specific lengths for each order are attached. The connection of the slots with each other and with the other stations is done by means of flanges that are screwed with each other.
These corners sections form an "L", thus being able to form various transport lines
During the whole way through the pendulum bucket elevator, the buckets are always in a horizontal position. Only in the outlet section, the buckets are tilted .The total rotation of the bucket at the outlet guarantees a complete emptying.
- This is the last station in the system.
- The gear motors is a 2HP20RPM model .
- It is necessary to use a soft starter
The buckets are made of plastic that are food safe.
The metal chain grants long life and is easy to assemble by means of using simple master links. The buckets can be taken off the chain without any tools, therefore changing of buckets is very easy.
