General :

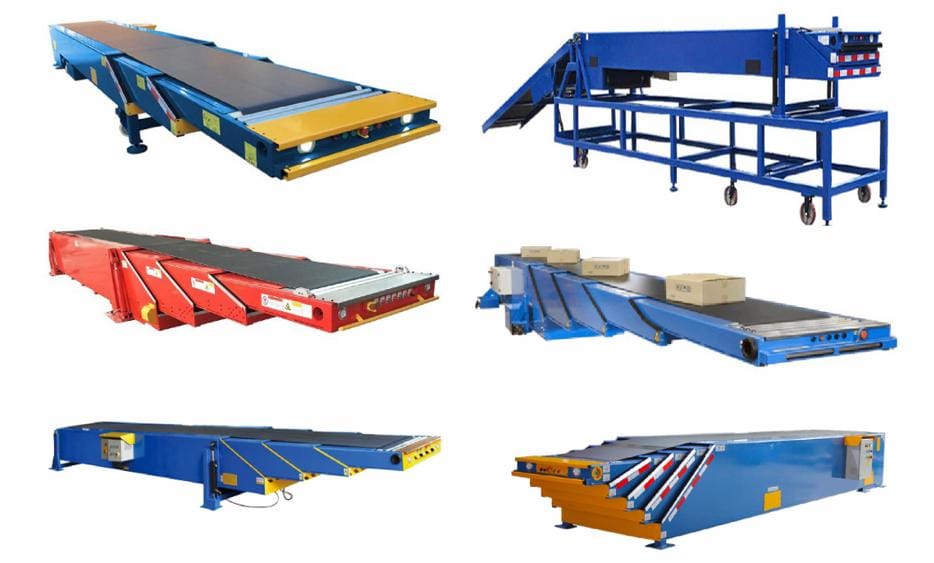

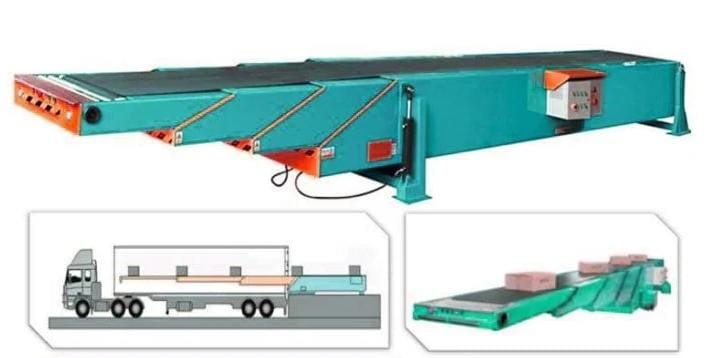

HA4.0 is a specialist in manufacturing of the telescopic conveyor which is used to load and unload trucks, 20′ or 40′ containers and large trailers. This versatile equipment designed with the ergonomics of operations in mind is a masterstroke requirement for the factories of all types which presently depend on manual labor. With the conveyor the automation can be achieved including package counting, RFID tags, barcoded dispatch, etc.
HA also provides customization in telescopic conveyor as like platform along with conveyor for lifting material up to conveyor height.
HA4.0 is a specialist in manufacturing of the telescopic conveyor which is used to load and unload trucks, 20′ or 40′ containers and large trailers. This versatile equipment designed with the ergonomics of operations in mind is a masterstroke requirement for the factories of all types which presently depend on manual labor. With the conveyor the automation can be achieved including package counting, RFID tags, barcoded dispatch, etc.
HA also provides customization in telescopic conveyor as like platform along with conveyor for lifting material up to conveyor height.
Product Range: <br
| Model | Stages | Extension | Closed Length | Total Length | Rear Height | Front Height |
|---|---|---|---|---|---|---|
| HA - TBC 20x1 | 1 | 5500mm | 7000mm | 12500mm | 800-1000mm | 1000-2500mm |
| HA - TBC 20x2 | 2 | 5500mm | 6000mm | 11500mm | 800-1000mm | 1000-2500mm |
| HA - TBC 20x3 | 3 | 5500mm | 4200mm | 9700mm | 800-1000mm | 1000-2500mm |
| HA-TBC 40x2 | 2 | 9000mm | 10000mm | 19000mm | 800-1000mm | 1000-2500mm |
| HA-TBC 40x3 | 3 | 11000mm | 6600mm | 17600mm | 800-1000mm | 1000-2500mm |
| HA-TBC 40x4 | 4 | 11000mm | 5000mm | 16000mm | 800-1000mm | 1000-2500mm |
- OPTION1: Hydraulic Function for moving the extension part up/down.
- OPTION2: Movable Function
Features / Structure
HA’s Telescopic Conveyor can not only be used in loading bays, shipping or dock areas but also as a conveyor based on the requirement at the hour of operation.
- 3 ply PVC or Nylon or Rubber belt with rough top design.
- Forward and Reverse i.e. Bidirectional.
- Motorized Pulley (integrated) of of 3 kW.
- Adjustable from 5 m per min to 40 m per minute in both direction using heavy duty drive.
- IP 65 standard mounted by standard on the left in the rear with PLC programmable.
- 20 to 40 deg C with Humidity 35% to 100%.
- Factor of safety 3 in all mechanical component.
Application
Truck Loading Unloading, Areas of space restriction, Cartons, Loading & Unloading of Gunny Bags, Small and big tires, Bales of wadding, PU and PS Panels, Mattresses, Bags, Rolls of rubber, Furniture, Fast moving Consumer Goods, Loose materials.
Suitable for all industry sectors
Cement Industry, Electronics, Food & Beverage, Food Processing, Heavy Engineering, Logistics, Manufacturing, Paper, Pharmaceuticals, Truck Loading, Warehouses.
Notes
- Have a problem with loading times at your dock.?
- Have problems with the manpower required to load or unload.?
- Manually stack and un stack material from inside and into a truck.
- Ergonomics is badly affected and it leads to health problems in your work.
- Have limited space in the loading area and no dock exits?
- Forklifts can’t enter into the truck due to the poor truck strength of floor
- People get injured carrying material in and out
- Employee morale is low
