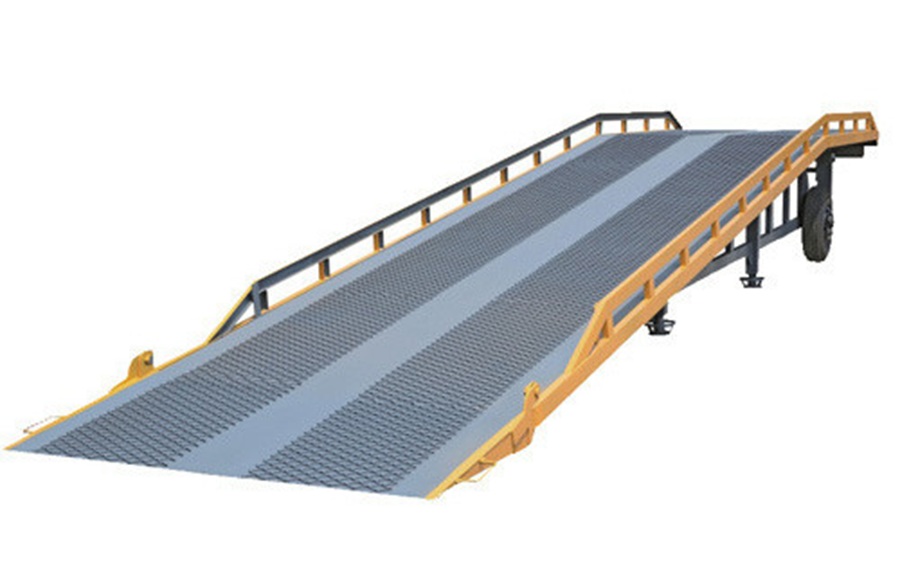

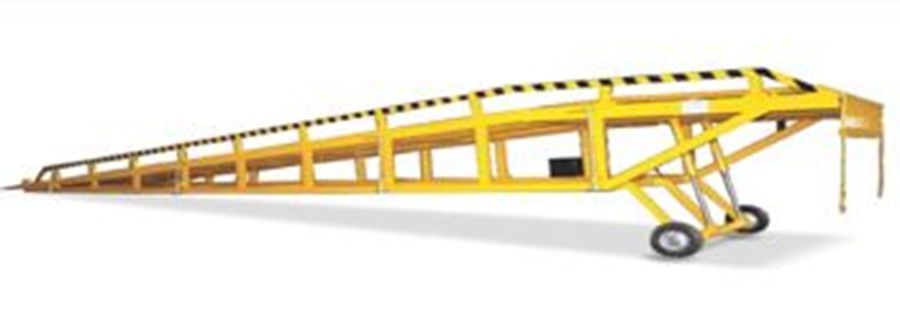

ELECTRO – HYDRAULIC DOCK RAMP ; MOBILE DOCK RAMP
General :
Manufactured as per international standards & robust enough to operate in domestic conditions. A range of hydraulic dock ramp for loading containers. Ideal for loading & unloading operations using forklift trucks, stackers or pallet trucks into trucks & containers directly from factory shop floors.
Product Range:
| Model | HA-DR 1 | HA- DR 2 | HA- DR 3 | HA- DR 4 |
|---|---|---|---|---|
| Capacity | 6000 Kg | 10000 kg | 12000 kg | 15000 kg |
| Overall Length | 10300mm | 11800mm | 13100mm | 13100mm |
| Overall Width | 2080mm | 2080mm | 2100mm | 2100mm |
| Incline Length | 6000mm | 7500mm | 7500mm | 7500mm |
| Platform Length | 3000mm | 3000mm | 3000mm | 3000mm |
| Total Lift Height | 1700mm | 1700mm | 1700mm | 1700mm |
| Min. Height | 1000mm | 1000mm | 1000mm | 1000mm |
| Tyres | Solid Rubber | Solid Rubber | Solid Rubber | Solid Rubber |
| Operation | Manual Hydraulic Hand Pump | Manual Hydraulic Hand Pump | Manual Hydraulic Hand Pump | Manual Hydraulic Hand Pump |
Note:
- Hydraulic Control is available with AC power pack
- CUSTOMIZED EQUIPMENT CAN BE OFFERED
- Flameproof controls are available.
Structure
- Robotically Welded Structure.
- Easy to clean resulting in longer life to components.
- Single push button control & eliminates any potential accident.
- Superior structural support & level interface with floor.
- Best in class Strength, efficiency & safety.
Application

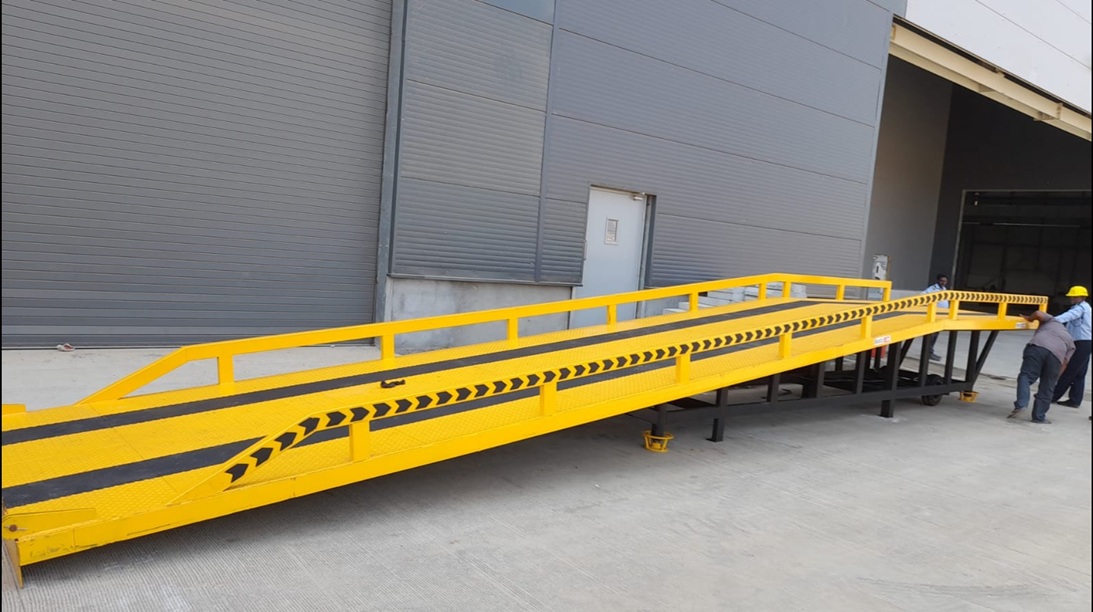

- Used to bridge the height difference between the shop floor & vehicle platform. This equipment can be carried from one place to another with help of forklift. Mostly used for container loading & unloading by forklift.
