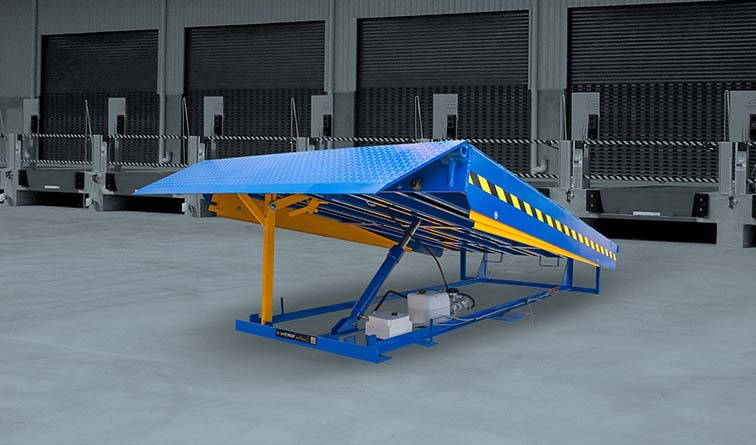

ELECTRO – HYDRAULIC DOCK LEVELLER
General :
Manufactured as per international standards & robust enough to operate in domestic conditions. A range of hydraulic dock levelers with options of lifting & capacity available to select. Ideal for loading & unloading operations using forklift trucks, stackers or pallet trucks into trucks & containers directly from factory shop floors.

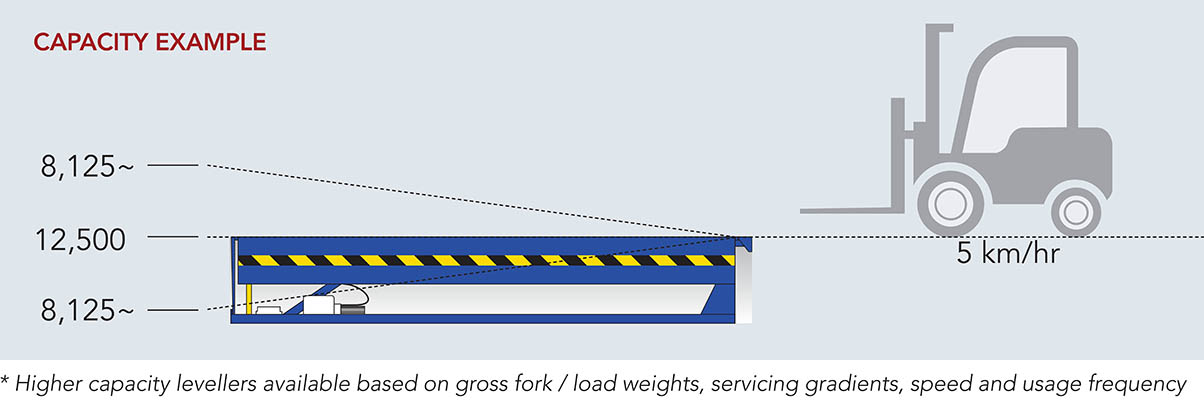

Dock Leveler Product Range:
| Model | Capacity | Lip Size | Platform Size |
|---|---|---|---|
| HA-DL1 | 4000 Kg | 450 mm | 2000mm x 2500mm |
| HA-DL2 | 6000 Kg | 450 mm | 2000mm x 2500mm |
| HA-DL3 | 10000 Kg | 450 mm | 2000mm x 2500mm |
| HA-DL4 | 12000 Kg | 450 mm | 2000mm x 2500mm |
| HA-DL5 | 14000 Kg | 450 mm | 2000mm x 2500mm |
| HA-DL6 | 16000 Kg | 450 mm | 2000mm x 2500mm |
Note:
- CUSTOMIZED EQUIPMENT CAN BE OFFERED
- Flameproof controls are available.
Features/Structure:
- Robotically Welded Structure.
- Easy to clean resulting in longer life to components
- Single push button control & eliminates any potential accident
- Superior structural support & level interface with floor.

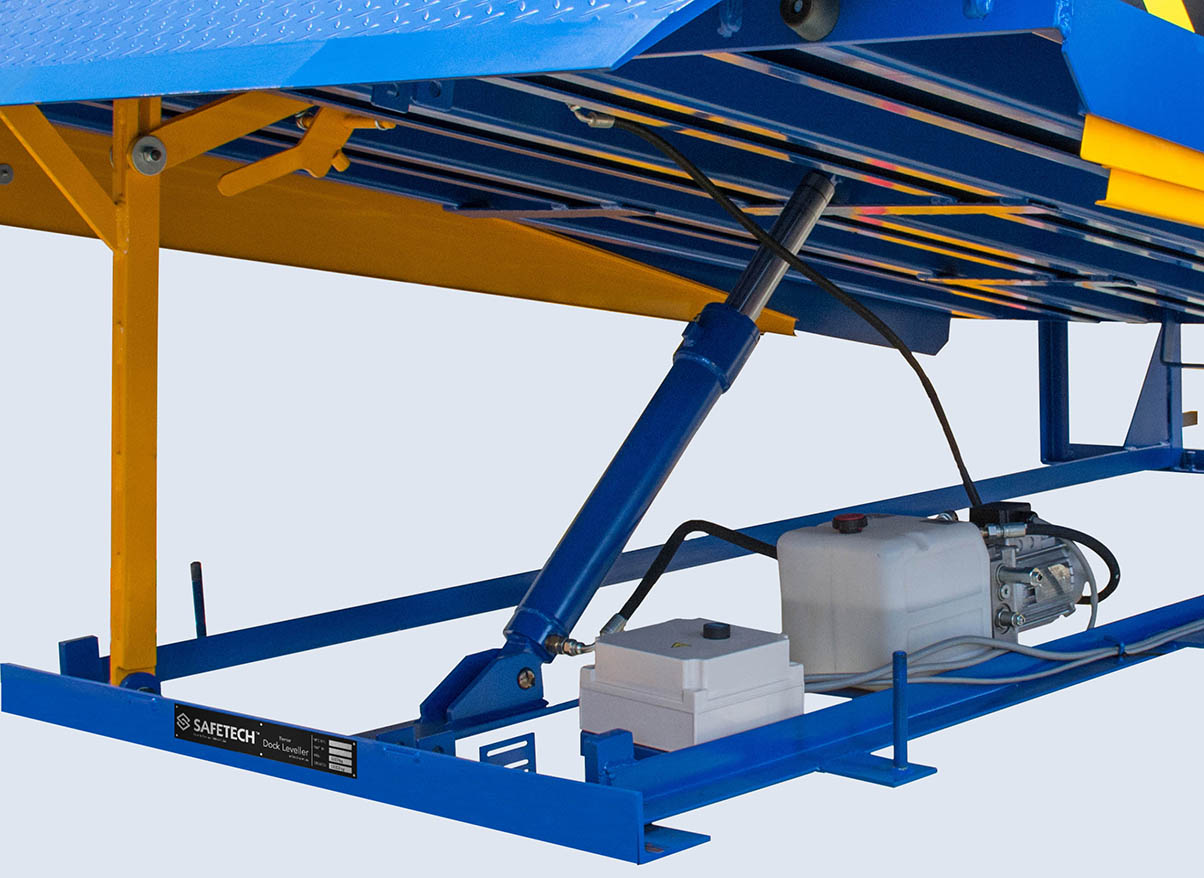

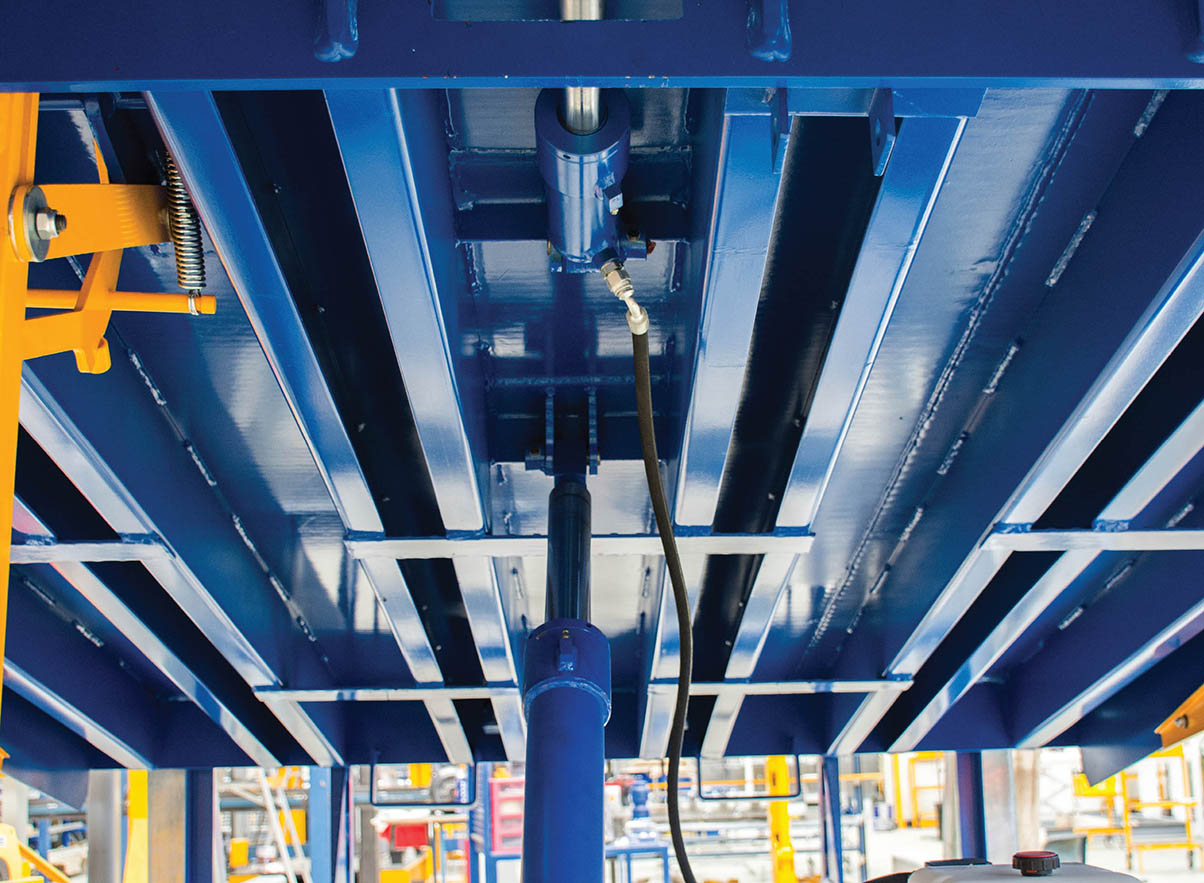

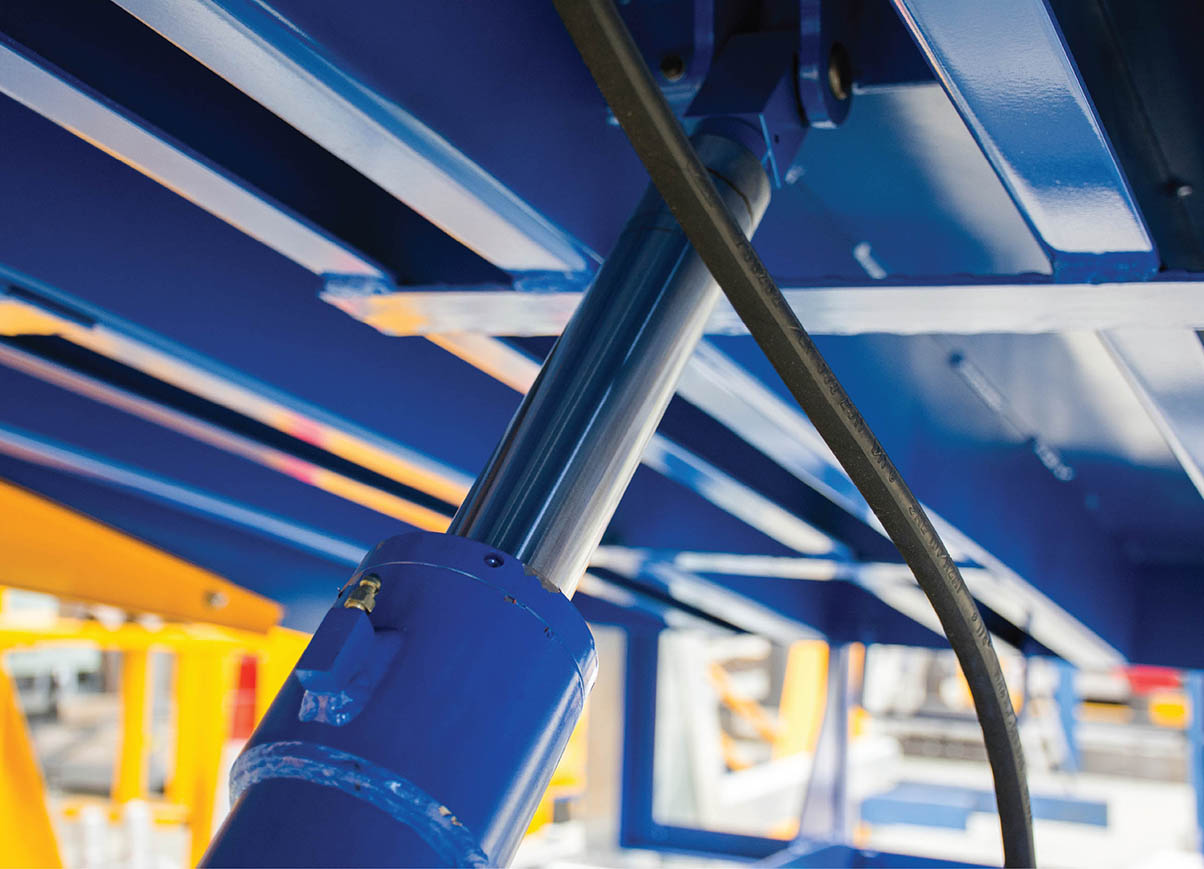

- 4"dm hydraulic cylinder with velocity fuse mounted at front of ramp.
- Best in class Strength, efficiency & safety.
Application

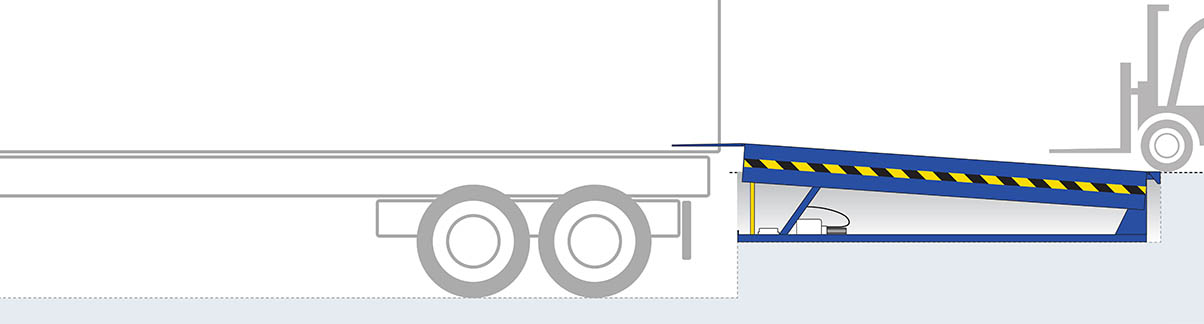

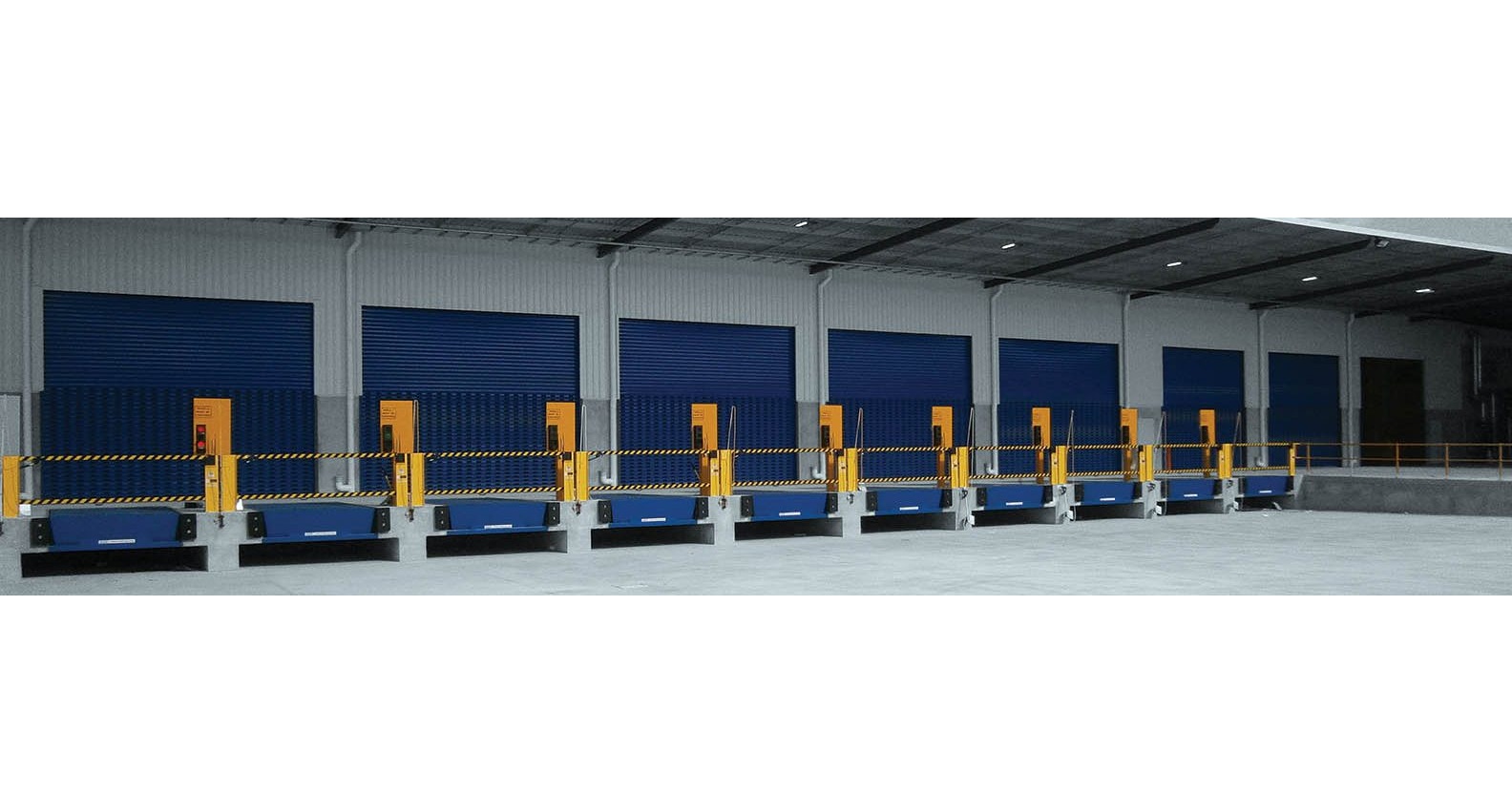

- Widely used to bridge the height difference between the vehicle level & the shop floor at dispatch bay.

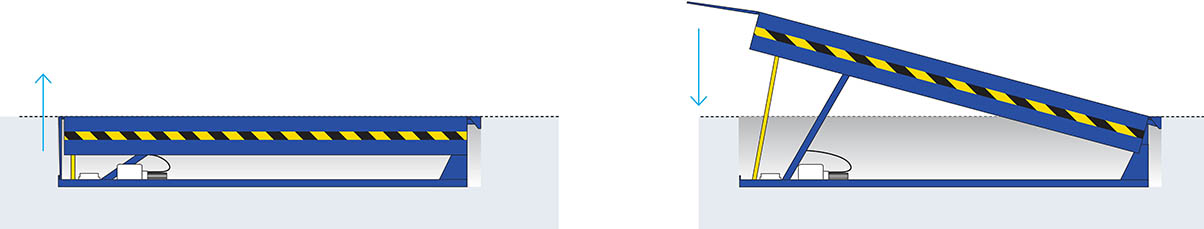

- To be installed into the civil pit.
- Ideal Shop floor Height from the ground floor for the installation is 1100mm to 1200mm
